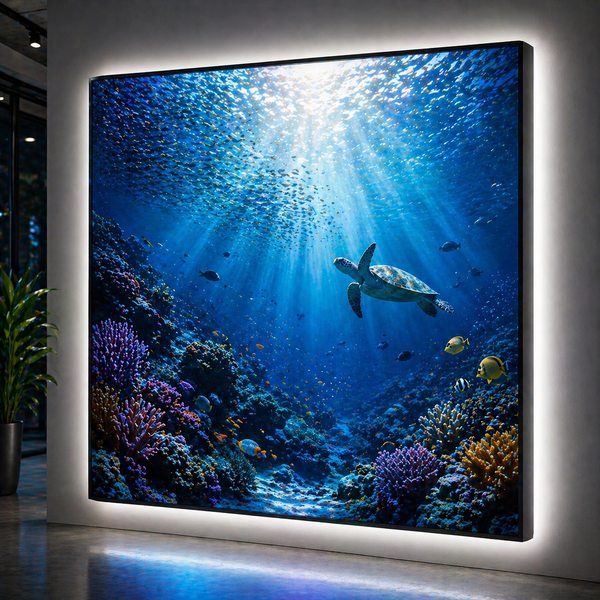

Briteline® Sunshine lightbox is a high-performance backlit textile specifically engineered for UV printing applications. Featuring a unique coating, this fabric is designed to deliver vibrant colour output and excellent light diffusion, making it ideal for lightboxes, retail displays, and illuminated signage.
Manufactured from a premium blend of polyester with PA and PU coating, Sunshine Lightbox combines durability with a smooth printable surface. Its wide-format capability of up to 500 cm allows for seamless large-scale graphics, while its lightweight construction ensures easy handling and efficient installation.
Key Features
Specialist coating for UV, Latex, and Solvent printing
Excellent light transmission (~55%) for bright, even illumination
Designed for lightboxes and backlit displays
Wide format capability – up to 500 cm
Lightweight at 175 gsm for easy handling
Woven construction for consistent print quality
Supports hot cutting for clean finishing
Fire-rated and environmentally certified
Applications
Lightboxes
Backlit displays
Retail graphics
Exhibition displays
Ink Compatibility
UV
Latex
Solvent
Material & Technical Specifications
| Property | Specification |
|---|---|
| Material | Polyester + PA + PU (Woven) |
| Weight | 175 gsm |
| Thickness | 0.22 mm |
| Maximum Width | Up to 500 cm |
| Shrinkage | Not specified |
| Light Transmission | ~55% |
| Stretch | Length 0.9% (±0.7%) / Width 0.8% (±0.4%) |
Print & Finishing Notes
Print side: IN
Cutting methods: Hot
Certifications
REACH Compliant
FR EN 13501
FR NFPA 701
FR B1
FR M1
OEKO-TEX®
GRS (Global Recycled Standard)
Important Information
The technical data provided is based on tests believed to be reliable and is for guidance only. It does not constitute a guarantee or warranty. Users should independently assess suitability for their intended application. All specifications are subject to change without notice.
